What the turbocharger does it, it smartly uses the exhaust gases which are going waste and redirects them into a manifold (A maze of pipes) through which the air gets compressed by a turbine and is again put into the diesel combustion chamber. Now in diesel cars, only the air-intake is observed while the fuel is injected/sprayed over. This makes the turbocharger more suitable for Diesel engines as throwing air is easier.Once the engine has more air, more combustion takes place and hence you get a boost.
Working Process and Functions of Turbocharger Components
Air Filter: Initially, air passes through the air filter, which removes dust and impurities. This ensures that the air entering the turbocharger is clean, protecting both the engine and turbocharger from damage caused by contaminants.
Compressor: The filtered air then enters the compressor. By rotating, the compressor compresses the air, increasing its pressure and temperature, which enhances the amount of air entering the engine. This compressed air has a higher density, providing more oxygen for the subsequent combustion process.
Intercooler: Next, the high-temperature compressed air flows into the intercooler. The intercooler reduces the air temperature, thereby increasing its density. This step is crucial as the cooled air contains more oxygen, improving combustion efficiency.
Throttle Valve: The cooled air passes through the throttle valve, which controls the amount of air entering the engine cylinders, thereby adjusting the engine's output power. The driver controls the throttle valve opening through the accelerator pedal, indirectly managing the engine's power output.
Intake Manifold: The air then passes through the intake manifold, which evenly distributes it to each engine cylinder. The intake manifold ensures that each cylinder receives an equal amount of air, maintaining smooth and efficient engine operation.
Engine Cylinders: Inside the cylinders, the air mixes with fuel and combusts, generating powerful explosions that drive the pistons and power the engine. This is the core process where the internal combustion engine generates power.
Exhaust Manifold: The combusted exhaust gases are directed through the exhaust manifold to the turbine. The exhaust manifold collects these gases and guides them towards the turbine, utilizing their energy to drive the turbine.

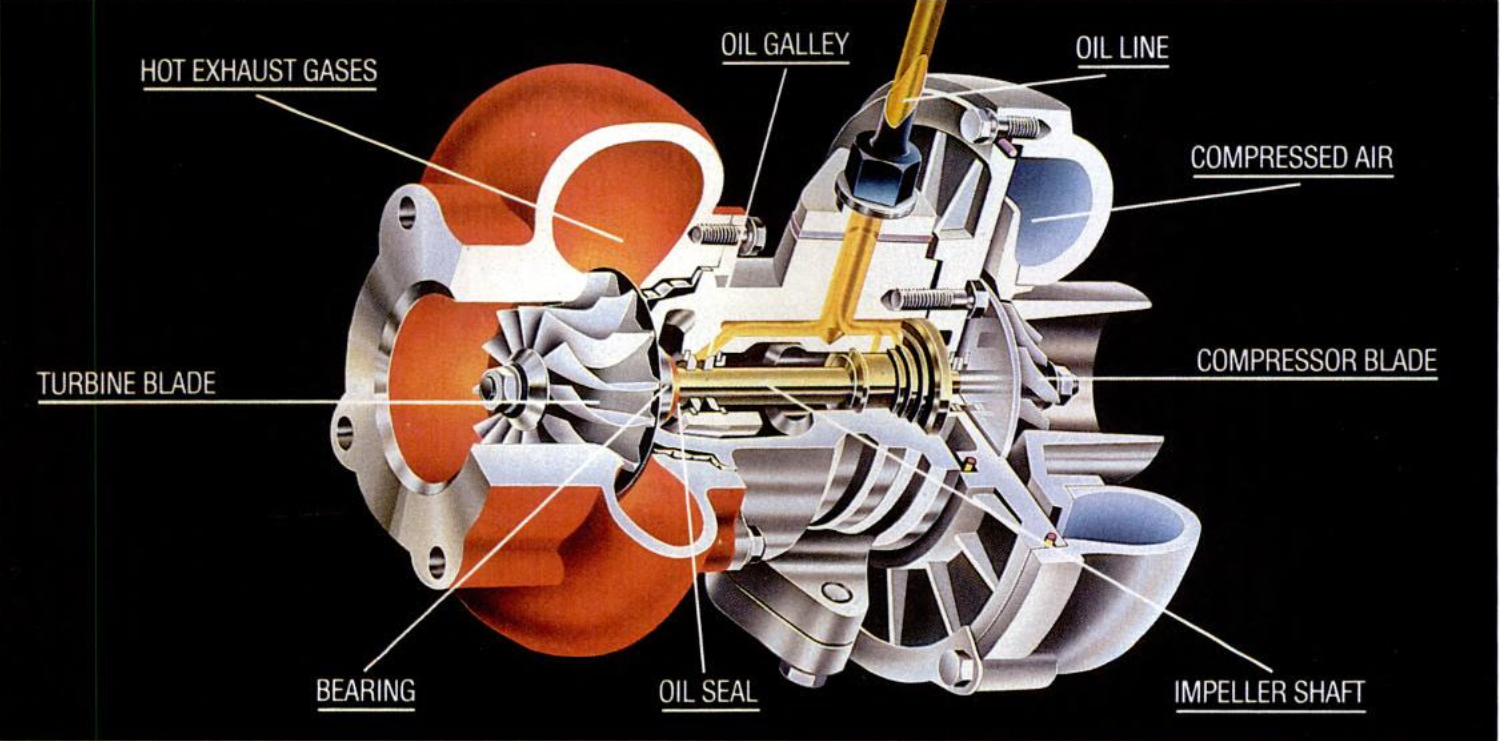

Turbine: The exhaust gases drive the turbine to rotate. Connected to the compressor via a shared shaft, the turbine spins similarly to a windmill, converting the kinetic energy of the gases into mechanical energy.
Exhaust Pipe: Finally, the exhaust gases, after passing through the turbine, are expelled from the vehicle through the exhaust pipe. The exhaust pipe directs these gases out, ensuring they do not remain in the system, which could affect the normal operation of the turbocharger and engine.
Advantages of Turbochargers
Increased Power: By compressing the air entering the engine, a turbocharger significantly boosts the engine's power output. With the same displacement, a turbocharged engine provides higher power and torque.
Improved Fuel Efficiency: The increased combustion efficiency from the compressed and cooled air allows a turbocharger to enhance engine performance without increasing fuel consumption, thus improving fuel efficiency.
Reduced Engine Displacement: Turbochargers enable smaller displacement engines to deliver power equivalent to larger naturally aspirated engines. This results in lighter engines with better fuel economy while maintaining performance.
Reduced Emissions: By improving combustion efficiency and optimizing the air-fuel mixture, turbochargers can reduce harmful exhaust emissions, helping decrease environmental pollution.
Enhanced Driving Experience: Turbochargers provide stronger acceleration and more responsive handling, making the driving experience more enjoyable and exciting.
Conclusion
A turbocharger utilizes the exhaust gases emitted by the engine to drive a turbine, compressing the intake air to improve combustion efficiency and engine performance. Each component of the turbocharger plays a crucial role in this process, collectively delivering the advantages of turbocharging. With ongoing technological advancements, turbochargers in automotive engines will become increasingly widespread, offering more efficient and environmentally friendly power solutions for vehicles.
